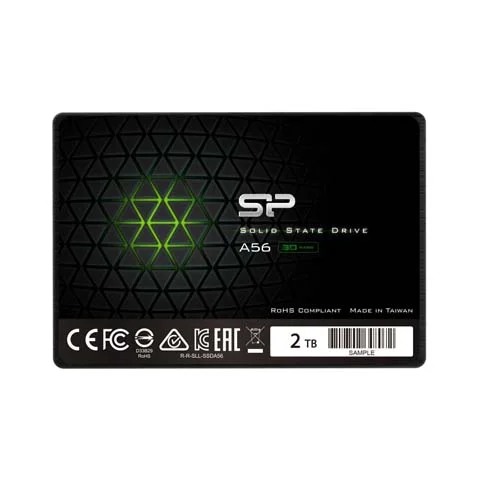

Silicon Power Ace A56 2TB SATA 6Gb/s 2.5 Inch Solid State Drive SSD SP002TBSS3A56A25
Overview :
• 3D NAND flash and “SLC Cache Technology” to improve overall performance
• 15 x faster than a standard 5400 HDD*
• 7mm slim design suitable for ultrabooks and ultra-slim laptops
• Supports TRIM command and garbage collection technology
• NCQ and RAID ready
• ECC (error correction code) technology to guarantee reliable data transmission
• S.M.A.R.T. monitoring system
• Low power consumption, shock- and vibration-proof, noiseless and low latency
• Free SP ToolBox software download to easily obtain disk information such as self-monitoring analysis report, extent of consumption and SSD diagnostics
Specification :
| Product Description | Integral V Series Version 2 – SSD – 2 TB – SATA 6Gb/s |
| Type | Solid state drive – internal |
| Capacity | 2 TB |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | 2.5″ |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Features | Shock resistant, Wear Leveling Support, Ultra-efficient Block Management, TRIM support, S.M.A.R.T. |
| Dimensions (WxDxH) | 69.8 mm x 100.2 mm x 7 mm |
| Weight | 45 g |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Solid state drive – internal |
| Capacity | 2 TB |
| NAND Flash Memory Type | Triple-level cell (TLC) |
| Form Factor | 2.5″ |
| Interface | SATA 6Gb/s |
| Features | Shock resistant, Wear Leveling Support, Ultra-efficient Block Management, TRIM support, S.M.A.R.T. |
| Width | 69.8 mm |
| Depth | 100.2 mm |
| Height | 7 mm |
| Weight | 45 g |
| Performance | |
| SSD Endurance | 960 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 520 MBps (read) / 470 MBps (write) |
| Reliability | |
| MTBF | 2,000,000 hours |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 2.5″ |
| Power | |
| Voltage Required | 5 V |
| Power Consumption | 1.65 Watt (read) 1.8 Watt (write) |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, UKCA |
| OEM Manufacturer Equivalent Part Number | Silicon Power SP002TBSS3A56A25 |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 10.7 cm |
| Shipping Depth | 1.3 cm |
| Shipping Height | 13.3 cm |
| Shipping Weight | 64 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – 3 years / 960 TBW |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Humidity Range Operating | 5 – 85% |
